Non-Radiometric Thermal Cores
Product Features

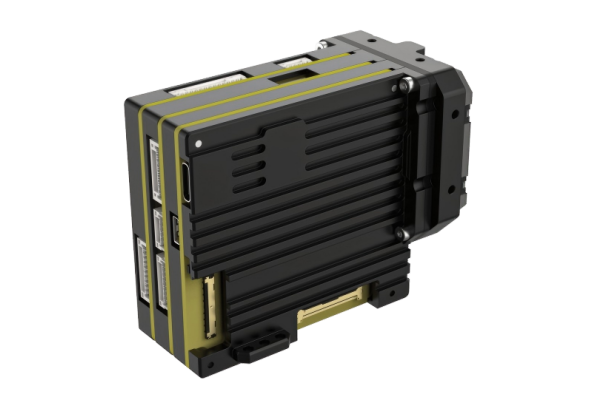

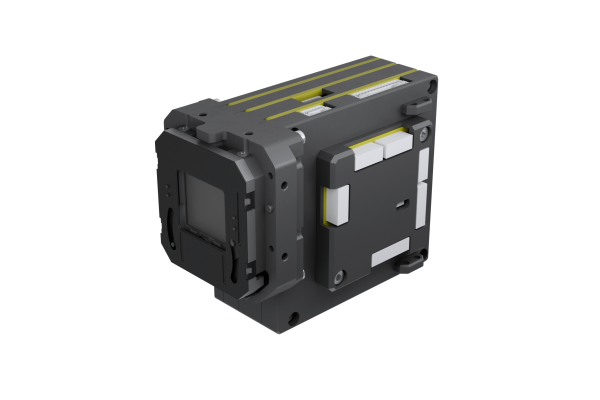

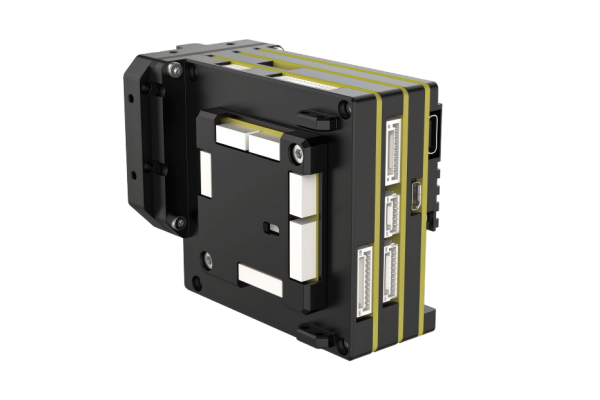

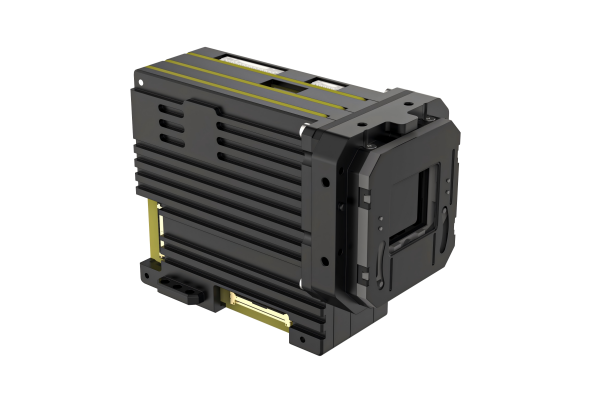

AI Super Resolution Enhancement, thermal image sensor 640 x 512, and 1920x1080 HD output Compatible with multi-lens types: Athermalization,fixed focus, motorized and zoom lens etc Advanced AI Intelligent Detection: Recognition and alerts for human, vehicles, boats, animals, etc Supports 2 video inputs, single IP output. HDMI video output for convenient integration Standardized interfaces, supporting secondary development on the third party| Model | ThermEye D6 Pro |
|---|---|
| Detector | Uncooled VOX FPA |
| Resolution / Pixel pitch | 640×512 , 12μm |
| Spectrum range | 8–14μm |
| NETD | ≤25mk@ 300K |
| Spectral range | 8~14um |
| Focus method | Optional athermalization, fixed lens, motorized, zoom lens etc. |
| Image adjustment | Auto adjustment for contrast ratio & brightness & acutance |
| Uniformity correction | Auto(timing & temperature difference) /manual shutter correction, background correction |
| Palette | Optional nine color palettes(rust, rainbow, white/black, etc.) |
| Image denoising | DNR |
| Image process | IDE, real time super resolution |
| Output resolution | Main-Stream: 1920*1080,1280*1024,768*576,640*512 Sub-stream: 640*512,320*256 |
| Frame rate | 25Hz as the default（configurable） |
| OSD | Yes |
| Fire detection | Yes |
| VCA | Motion detection, cross line, intrusion, area entry and exit, crowd gathering etc. |
| AI recognition | Human,vehicle, vessel etc. |
| Video Compression | H.265/H.264 |
| H.265 | Main Profile |
| H.264 | BaseLine Profile / Main Profile / High Profile |
| Network protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP, |
| Interface protocol | ONVIF ,GB28181-2016,third-party management platform,ISAPI |
| Common function | Heartbeat, password protection, multi-user access control up to 3 users |
| Security | Authorized username and password |
| Language | English as the default |
| Simultaneous Live View | Chrome, PC client-side, up to 10 channels for live view |
| Power | DC12V（DC9V-DC15V） |
| Communication Interface | 100/1000MBase-TX self-adaptive Ethernet |
| Serial port communication | 1x ch TTL3.3V ( Visca protocol), 1x ch RS485(Pelco-D protocol) |
| Alarm I/O | 1x ch input, 1x ch output |
| Audio I/O | 1x ch input, 1x ch output |
| Reset button | Yes |
| Mipi | With 4MP video input ( including UART ) |
| USB | Yes ( UVC protocol ) |
| HDMI | Yes |
| RS422 | Yes |
| Work Temperature / Humidity | -40℃～+60℃, ＜90％RH |
| Storage temperature | –45°C ~ +75°C |
| Power Consumption | ＜3w ( w/o lens) |
| Reliability | TVS 6000V lightning protection, surge protection, voltage transient protection , with GB/T17626.5 standard |
| Size | ＜78.5*44*60 |
| Weight | ＜195g |
