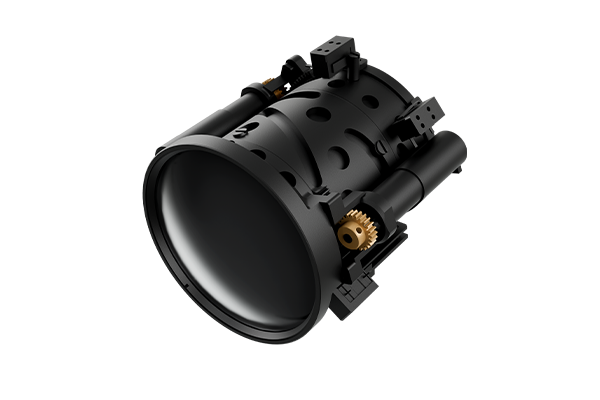

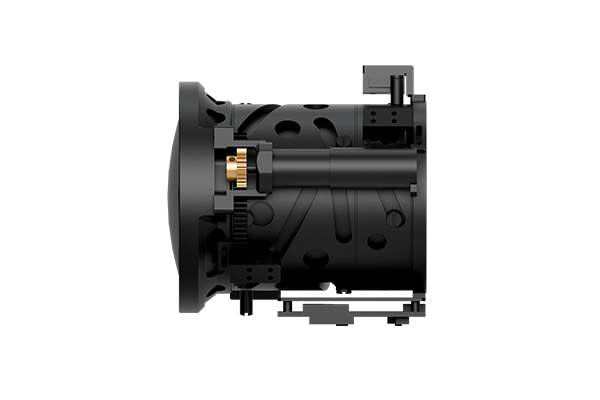

Electric Zoom Lens
NX15-7510ZA0
NX15-7510ZA0
NX15-7510ZA0
Product Features
Electric zoom lens range from 15mm to 75mm Variable aperture for ample light even at short focal lengthsDLC (diamond-like carbon) hard coating for enhanced durability in outdoor conditions Lightweight design for flexible integration Precision co-focusing design ensures no out-of-focus areas when zooming across the entire focal range at room temperature| Model | NX15-7510ZA0 |
|---|---|
| Optical Feature - Focal Length | 15mm to 75mm |
| Optical Feature - F/# | 1.0–1.2 |
| Optical Feature - Average Transmission | ≥85% |
| Optical Feature - Spectral Range | 8 ~ 12 μm |
| Optical Feature - Front Lens Coating | DLC |
| Optical Feature - Detector Type | 640x512, 12 μm |
| Mechanical - Focus Type | Electric zoom lens |
| Mechanical - FOV | 28.72° x23.15° (15mm) 5.86° x4.69° (75mm) |
| Mechanical - Weight | 400g±5% |

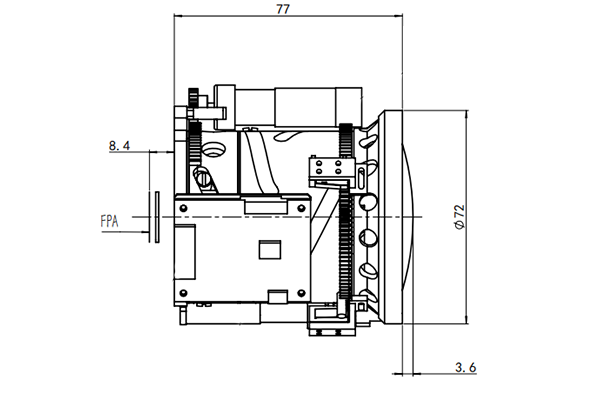

| Mechanical - Max. Dimension | L80.6mm, Φ72mm |
| Environmental - Operating Temperature | -40°C ~ +60°C |
| Environmental - Storage Temperature | -50°C ~ +70°C |
| Environmental - Protection Level | IP67 (Front lens) |
| Thermal Module - 12μm 384x288 (15mm) | 17.46° |
| Thermal Module - 12μm 640x512 (15mm) | 28.72° |
| Thermal Module - 12μm 384x288 (75mm) | 3.52° |
| Thermal Module - 12μm 640x512 (75mm) | 5.86° |
