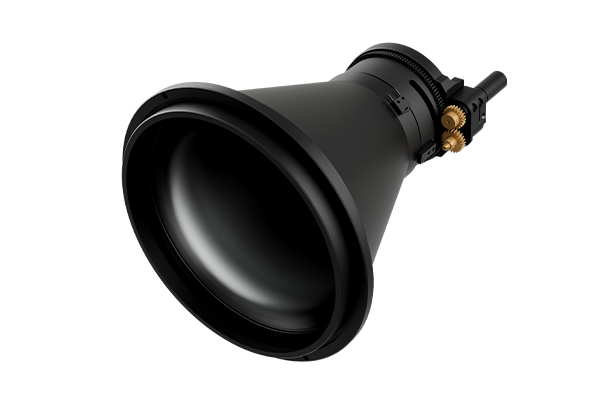

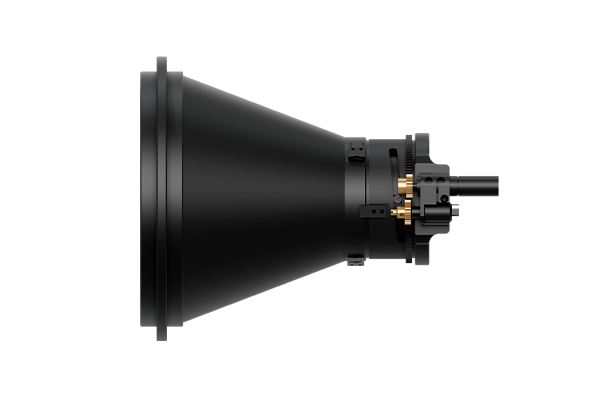

Fixed Focus Motorized Lens
NX15013
NX15013
NX15013
Product Features
Electric auto-focus for more convenient remote control Compatible with 1280*1024 12μm HD detector DLC diamond-like carbon coating for enhanced outdoor durability Lightweight design for flexible integration Flexible integration with security PTZ cameras and optoelectronic equipment| Model | NX15013 |
|---|---|
| Optical Feature - Focal Length | 150mm |
| Optical Feature - F/# | 1.3 |
| Optical Feature - Average Transmission | ≥84% |
| Optical Feature - Spectral Range | 8 ~ 12 μm |
| Optical Feature - Front Lens Coating | DLC |
| Optical Feature - Detector Type | 1280x1024, 12 μm |
| Mechanical - Focus Type | Fixed focus motorized lens |
| Mechanical - FOV | 5.86° x4.69° |
| Mechanical - Weight | 1kg ± 5% |

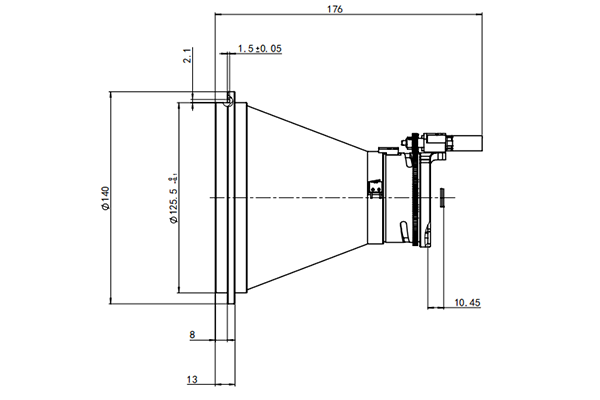

| Mechanical - Max. Dimension | L176mm, Φ140mm |
| Environmental - Operating Temperature | -40°C ~ +60°C |
| Environmental - Storage Temperature | -50°C ~ +70°C |
| Environmental - Protection Level | IP67 (Front lens) |
| Thermal Module - 12μm 256x192 | 1.17° |
| Thermal Module - 12μm 384x288 | 1.76° |
| Thermal Module - 12μm 640x512 | 2.93° |
| Thermal Module - 12μm 1280x1024 | 5.86° |
| Thermal Module - 17μm 256x192 | 1.66° |
| Thermal Module - 17μm 384x288 | 2.49° |
| Thermal Module - 17μm 640x512 | 4.15° |
