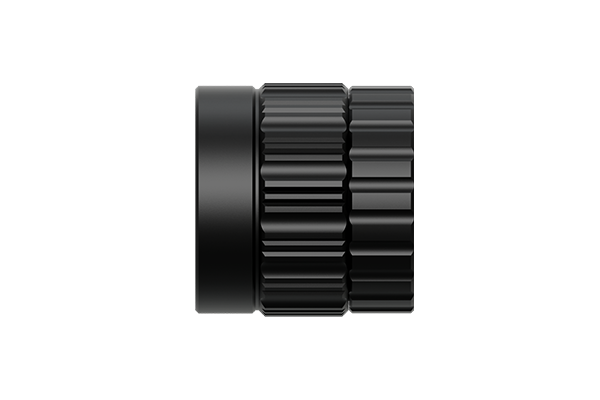

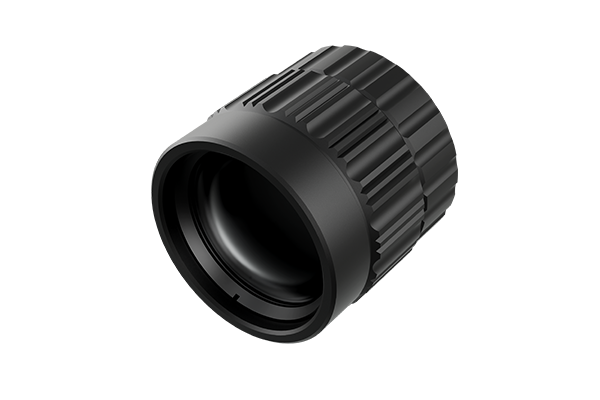

Fixed Focus Manual Lens
NX2509SA0
NX2509SA0
NX2509SA0
Product Features
Large aperture enhances detection in condition of the minimal temperature differences Full sulfur material for optical system Precision manual focus mechanism for accurate and controllable focusingHD hard coating for stability and durability in harsh outdoor environments Ultra-lightweight design for flexible integration| Model | NX2509SA0 |
|---|---|
| Optical Feature - Focal Length | 25mm |
| Optical Feature - F/# | 0.9 |
| Optical Feature - Average Transmission | ≥89% |
| Optical Feature - Spectral Range | 8 ~ 12 μm |
| Optical Feature - Front Lens Coating | AR+HD |
| Optical Feature - Detector Type | 384×288, 12 μm |
| Mechanical - Focus Type | Fixed focus manual lens |
| Mechanical - FOV | 10.53° x 7.91° |
| Mechanical - Weight | 62g±5% |

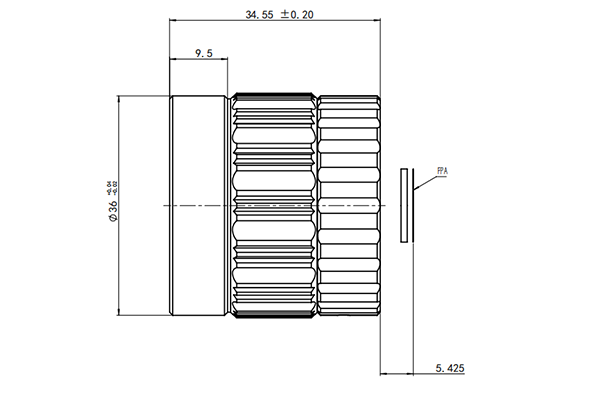

| Mechanical - Max. Dimension | L34.55mm, Φ36mm |
| Environmental - Operating Temperature | -40°C ~ +60°C |
| Environmental - Storage Temperature | -50°C ~ +70°C |
| Environmental - Protection Level | IP67 (Front lens) |
| Thermal Module - 12μm 256x192 | 7° |
| Thermal Module - 12μm 384x288 | 10.53° |
