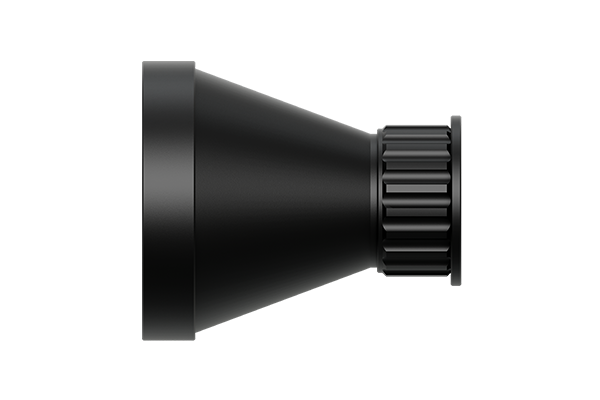

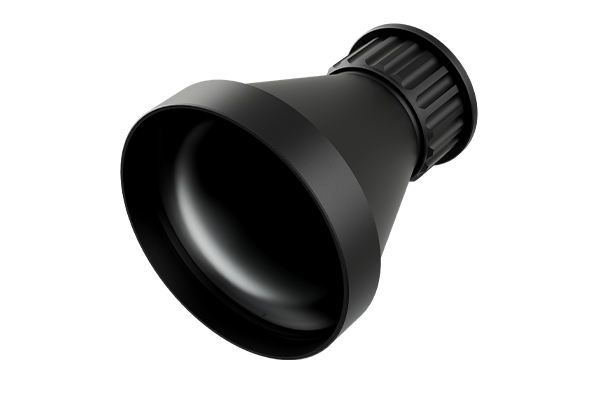

Fixed Focus Manual Lens
NX10010SA0
NX10010SA0
NX10010SA0
Product Features
Full sulfur material for optical system Precision manual focus mechanism for accurate and controllable focusing HD hard coating for stability and durability in harsh outdoor environments Ultra-lightweight design for flexible integration| Model | NX10010SA0 |
|---|---|
| Optical Feature - Focal Length | 100mm |
| Optical Feature - F/# | 1 |
| Optical Feature - Average Transmission | ≥92% |
| Optical Feature - Spectral Range | 8 ~ 12 μm |
| Optical Feature - Front Lens Coating | AR+HD |
| Optical Feature - Detector Type | 640×512, 12 μm |
| Mechanical - Focus Type | Fixed focus manual lens |
| Mechanical - FOV | 4.4° x3.52° |
| Mechanical - Weight | 510g±5% |

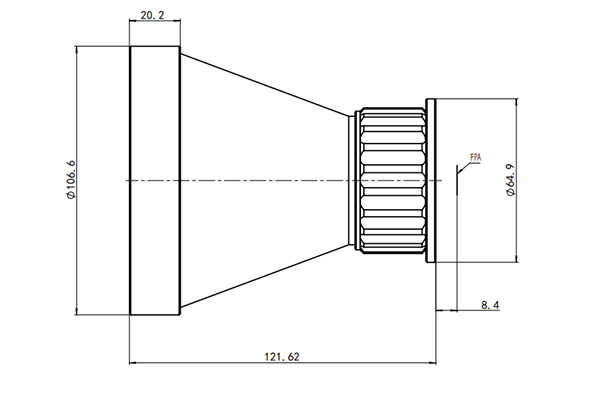

| Mechanical - Max. Dimension | L121.6mm, Φ106.6mm |
| Environmental - Operating Temperature | -40°C ~ +60°C |
| Environmental - Storage Temperature | -50°C ~ +70°C |
| Environmental - Protection Level | IP67 (Front lens) |
| Thermal Module - 12μm 384x288 | 2.64° |
| Thermal Module - 12μm 640x512 | 4.4° |
