MWIR Electric Zoom Lens
NX10-10040ZA0
NX10-10040ZA0
NX10-10040ZA0
Product Features
10x continuous zoom, covering both near and far ranges with a single device Precise parfocality design in order to always retain defined image along with the entire zoom range Wide temperature range design for stable operation in high-temperature industrial environments Standardised electronic control interface for rapid integration with industrial systems and pan-tilt camera| Model | NX10-10040ZA0 |
|---|---|
| Focal Length | 10mm / 100mm |
| F/# | 4 |
| Average Transmission | ≥75% |
| Spectral Range | 3.7~4.8μm |
| Front Lens Coating | HD |
| Detector | 640×512, 15μm |
| FOV (10mm) | 384×288: 32.13°; 640×512: 51.28° |
| FOV (100mm) | 384×288: 3.3°; 640×512: 5.49° |
| Weight | 500g ±5% |

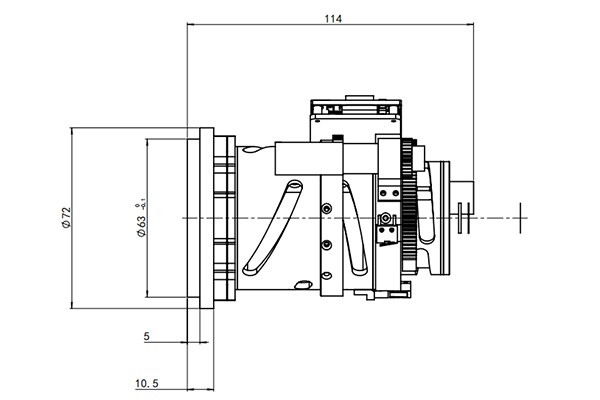

| Max. Dimension | L114mm, Φ72mm |
| Operating Temperature | -40℃ ~ +60℃ |
| Storage Temperature | -50℃ ~ +70℃ |
| Protection Level | IP67 (Front lens) |
