Athermalization

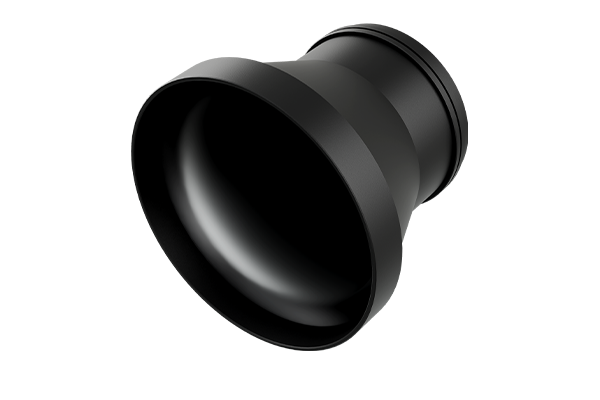

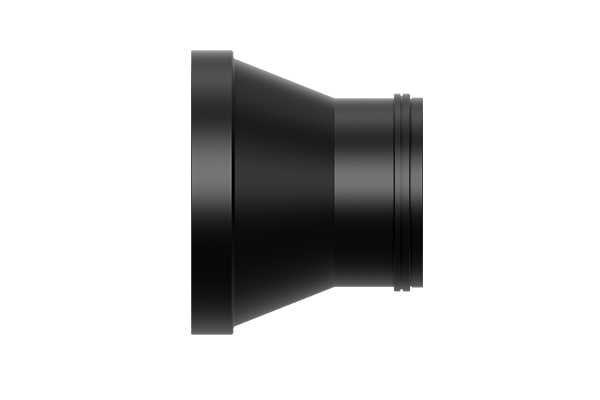

NX20012TA0-240
NX20012TA0-240
NX20012TA0-240
Product Features
Adopting full sulfur system for the thermal-free design,zero drift imaging across extreme temperature ranges Long focal length paired with high-definition detectors, capturing every detail from a distanceHD and AR for the coating technology, keeping stability and durability in harsh outdoor environments High-protection, all-solid-state construction for long-term Standard industrial-grade interfaces for flexible integration across multiple scenarios| Model | NX20012TA0-240 |
|---|---|
| Optical Feature - Focal Length | 200mm |
| Optical Feature - F/# | 1.2 |
| Optical Feature - Average Transmission | ≥80% |
| Optical Feature - Spectral Range | 8 ~ 12 μm |
| Optical Feature - Front Lens Coating | AR+HD |
| Optical Feature - Detector Type | 1280×1024 12 μm |
| Mechanical - Focus Type | Athermalization |
| Mechanical - FOV | 4.4° x 3.52° |
| Mechanical - Weight | ≤2.5Kg ±5% |

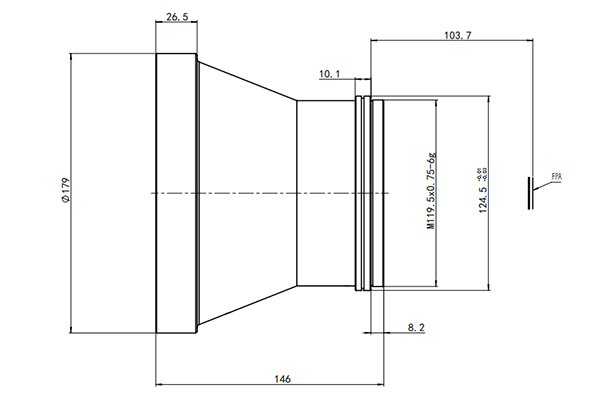

| Mechanical - Max. Dimension | L146mm, Φ179mm |
| Environmental - Operating Temperature | -40℃ ~ +60℃ |
| Environmental - Storage Temperature | -50℃ ~ +70℃ |
| Environmental - Protection Level | IP67 (Front lens) |
| Thermal Module - 12μm 384x288 | 1.3° |
| Thermal Module - 12μm 640x512 | 2.2° |
| Thermal Module - 12μm 1280x1024 | 4.4° |
| Thermal Module - 17μm 384x288 | 1.87° |
| Thermal Module - 17μm 640x512 | 3.12° |
