Athermalization
NX0910TA0
NX0910TA0
NX0910TA0
Product Features
Full temperature threshold with heat-free design,always stabilized thermal imageHigh transmittance, excellent detection performance in a low temperature difference Optimal focal length and wide depth of field, balancing coverage and details Highly protected, all-solid-state construction for long-term, maintenance-free outdoor operation Compact, lightweight design for flexible integration in multiple scenarios| Model | NX0910TA0 |
|---|---|
| Thermal Module - 12μm 160x120 | 12° |
| Thermal Module - 12μm 384x288 | 28.8° |
| Thermal Module - 12μm 640x512 | 48° |
| Optical Feature - Focal Length | 9.1mm |
| Optical Feature - F/# | 1 |
| Optical Feature - Average Transmission | ≥88% |
| Optical Feature - Spectral Range | 8 ~ 12 μm |
| Optical Feature - Front Lens Coating | AR+HD |
| Optical Feature - Detector Type | 640×512 12 μm |
| Mechanical - Focus Type | Athermalization |
| Mechanical - FOV | 59.07° × 49.77° |
| Mechanical - Depth of Field | 5m to ∞ |
| Mechanical - Weight | ≦10g±5% |

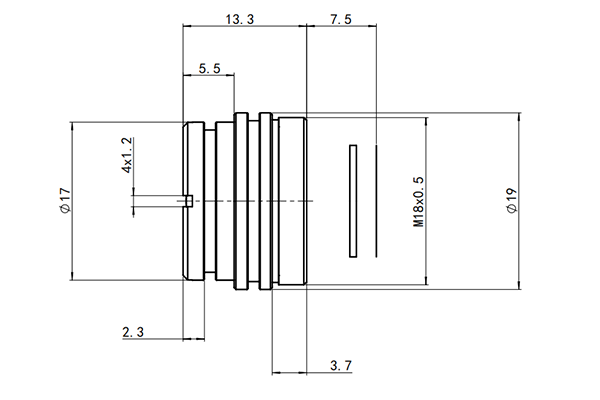

| Mechanical - Max. Dimension | L13.3mm, Φ17mm |
| Environmental - Operating Temperature | -40°C ~ +60°C |
| Environmental - Storage Temperature | -50°C ~ +70°C |
| Environmental - Protection Level | IP67 (Front lens) |
