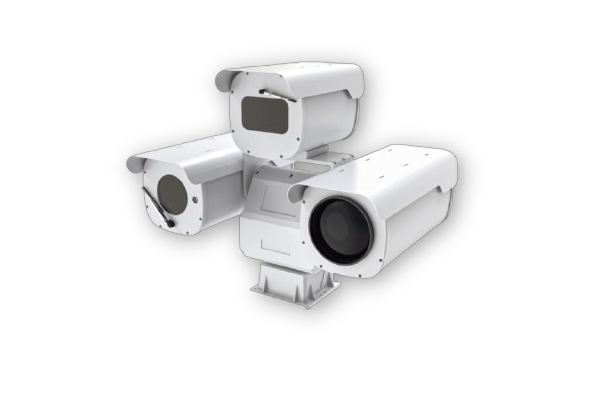

Cooled Thermal Imaging PTZ Camera
Product Features
Detect wide range frequency spectrum,integratedcooled infrared detector and visible camera Rapid rotation speed adjustment that is rotation speedup to 120%/s, acceleration for 120%/s² Strong environmental adaptability, IP66,prevent water,dust and corrosion resistant, electromagneticinterference resistant Optional laser ranging and gyroscopic imagestabilization| Model | EC Series |
|---|---|
| Detector | Cooled MCT FPA |
| Resolution / pixel pitch | 640×512/15μm |
| NETD | <20mK @ 25°C |
| Spectral range | 3.7~4.8μm |
| Focus method | Manual / Motorized (auto focus) |
| Focal length | 15~300mm F4.0, 22~450mm F4.0, 30~660mm F4.0 |
| Thermal Module - FOV | 35°×28°~1.8°×1.5°, 24.6°×19.8°~1.2°×1.0°, 18.2°×14.6°~0.8°×0.7° |
| Image adjustment | Auto/Manual adjustment for contrast ratio & brightness & acutance |
| Uniformity correction | Auto/Manual shutter, background correction |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Resolution | 2688×1520 |
| Focal length & zoom | 10~860mm, 86X |
| Optical Module - FOV | 38.4°~0.48° (wide to narrow) |
| Min. illumination | Color: 0.0005 Lux @(F1.5 AGC ON), B/W: 0.00001 Lux @(F1.5 AGC ON) |
| Thermal image process | AGC, IDE |
| Color palette | Optional 10 color palettes (rust, rainbow, white/black, etc.) |
| VCA | Motion detection, cross line, intrusion, area entry and exit |
| Fire detection | Support |
| Tracking | Human, vehicle, vessel, classification, recognition etc. |
| Movement range | Pan: 360° continuous; Tilt: -60°~+60° |
| Presets | 200 |
| Power off memory | Support |
| Pan speed | 0.01°~60°/s |
| Tilt speed | 0.01°~30°/s |
| Auto horizontal scan | Preset patrol / Auto line scanning & etc |
| Video compression | H.264 / H.265 |
| Main-stream (visible) | 2688×1520, 2560×1440, 1920×1080, 1280×960, 1280×720 |
| Sub-stream (visible) | 1280×720, 640×480, 352×288 |
| Main-stream (thermal) | 1920×1080, 1280×1024, 640×512 |
| Sub-stream (thermal) | 640×512 |
| Audio compression | G.711 |
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, DNS, NTP, RTSP, TCP, UDP, DHCP |
| API | ISAPI, SDK, third-party management platform, ONVIF |
| Common function | Heartbeat, password protection, multi-user access control |
| Security | Support password protection, bonding MAC ID, IP filtration |
| Simultaneous live view | 10 channels |
| User/host level | Up to 9 users, 3 levels: Administrator, Operator, General |
| Web browser | Google Kernel Browser, Edge |
| Alarm | 1×ch input, 1×ch output |
| Audio | 1×ch input, 1×ch output |
| Serial port | 1×ch RS485 |
| Communication interface | RJ45 10M/100M self-adaptive Ethernet |
| Storage | Micro SD |
| Web client language | English |
| Power supply | DC48V |
| Power consumption | ≤250W |
| Work temperature / humidity | -40°C~+60°C, <90%RH |
| Storage temperature | -45°C ~ +70°C |
| Protection | IP66 |
| Reliability | TVS 6000V lightning protection, surge protection, voltage transient protection |

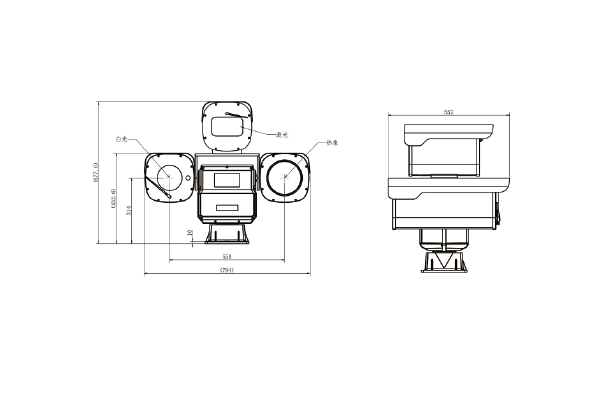

| Dimension | 794mm×557mm×677mm |
| Weight | <75Kg |
| Laser ranging (option) | 3km, 5km, 8km, 10km, 15km, 20km (one of six) |
