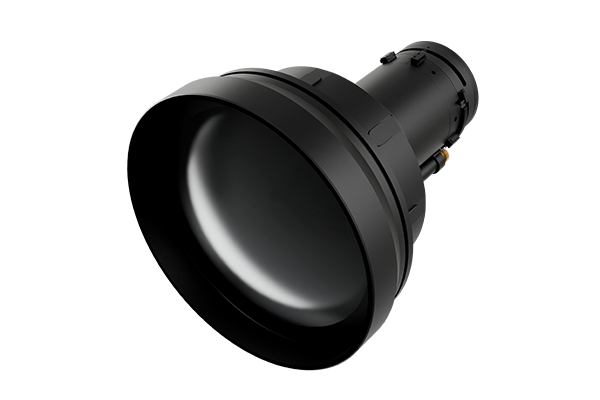

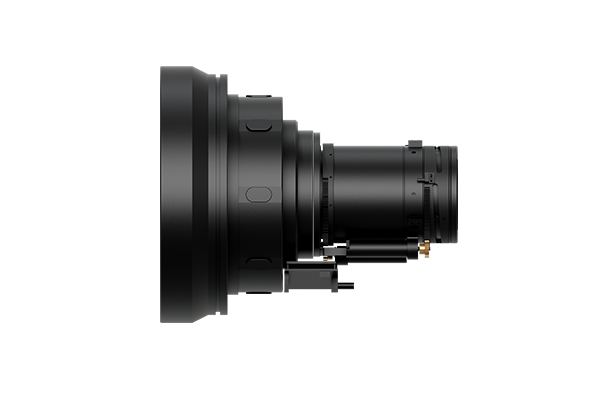

MWIR Electric Zoom Lens
NX88-110055ZA0
NX88-110055ZA0
NX88-110055ZA0
Product Features
Ultra-telephoto design for precise identification of distant targets Maintains focus throughout the zoom range without loss of focus compatible with optoelectronic PTZ Lens elements can be coated with a DLC hard coating, making them suitable for harsh environments such as the countryside, coastal defence and border areas Suitable for professional security applications such as border control, coastal defence, critical sites and power stations| Model | NX88-110055ZA0 |
|---|---|
| Focal Length | 88mm / 1100mm |
| F/# | 5.5 |
| Average Transmission | ≥75% |
| Spectral Range | 3.7~4.8μm |
| Front Lens Coating | DLC |
| Detector | 640×512, 15μm |
| Focus Type | MWIR electric zoom lens |
| FOV (88mm) | 384×288: 3.74°; 640×512: 6.24°×5° |
| FOV (1100mm) | 384×288: 0.3°; 640×512: 0.5°×0.4° |
| Weight | 6kg ±5% |

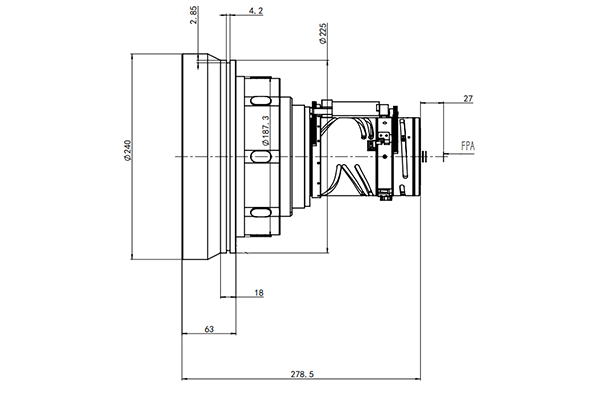

| Max. Dimension | L278mm, Φ240mm |
| Operating Temperature | -40℃ ~ +60℃ |
| Storage Temperature | -50℃ ~ +70℃ |
| Protection Level | IP67 (Front lens) |
