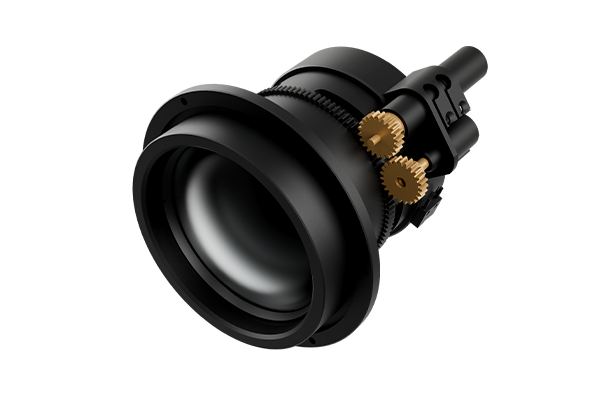

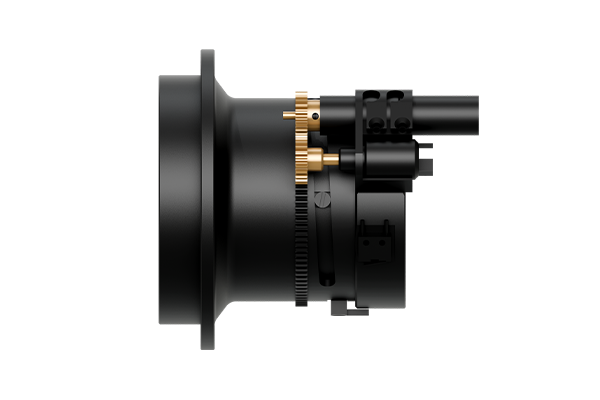

Fixed Focus Motorized Lens
Product Features
Electric auto-focus for more convenient remote control Compatible with popular infrared module DLC diamond-like carbon coating for enhanced outdoor durability Industrial-grade reliability Flexible integration with security PTZ cameras and optoelectronic equipment| Model | NX5010 |
|---|---|
| Optical Feature - Focal Length | 50mm |
| Optical Feature - F/# | 1 |
| Optical Feature - Average Transmission | ≥88% |
| Optical Feature - Spectral Range | 8 ~ 12 μm |
| Optical Feature - Front Lens Coating | DLC |
| Optical Feature - Detector Type | 640x512, 17 μm |
| Mechanical - Focus Type | Fixed focus motorized lens |
| Mechanical - FOV | 12.41° x9.95° |
| Mechanical - Weight | 300g±5% |

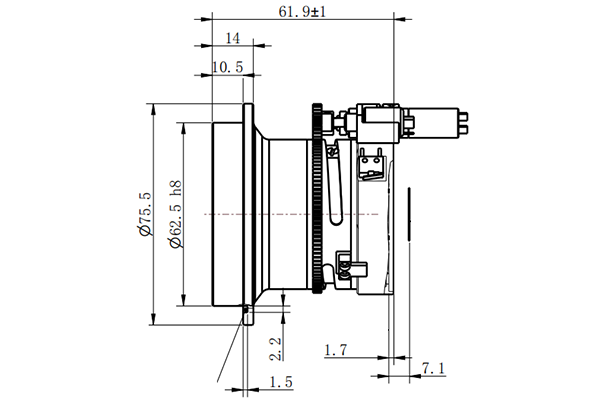

| Mechanical - Max. Dimension | L61.9mm, Φ75.5mm |
| Environmental - Operating Temperature | -40°C ~ +60°C |
| Environmental - Storage Temperature | -50°C ~ +70°C |
| Environmental - Protection Level | IP67 (Front lens) |
| Thermal Module - 12μm 256x192 | 3.52° |
| Thermal Module - 12μm 384x288 | 5.28° |
| Thermal Module - 12μm 640x512 | 8.78° |
| Thermal Module - 17μm 256x192 | 4.98° |
| Thermal Module - 17μm 384x288 | 7.47° |
| Thermal Module - 17μm 640x512 | 12.41° |
