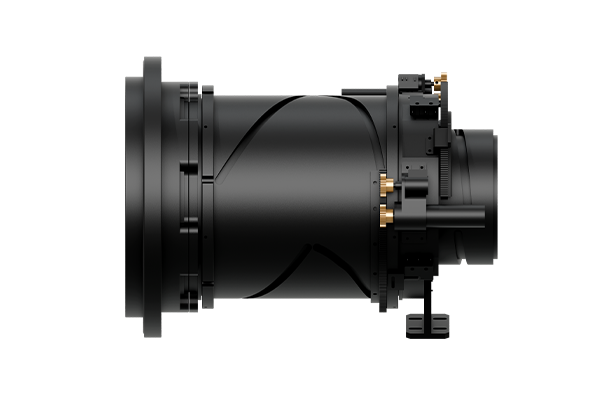

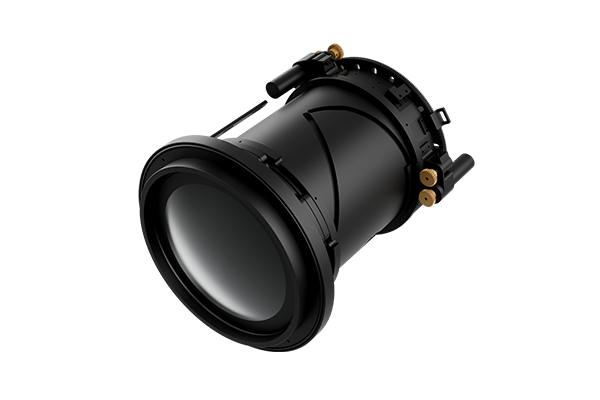

Electric Zoom Lens
Product Features
10x continuous zoom, covering both near and far ranges with a single device F0.95 ultra-wide aperture, delivering outstanding imaging performance even in low-temperature conditions DLC (diamond-like carbon) hard coating for enhanced durability in outdoor conditionsCompatible with high-definition detectors for precise identification of distant target details Automatic focus compensation ensures no loss of focus throughout the entire zoom range| Model | NX23-23009ZA0 |
|---|---|
| Optical Feature - Focal Length | 23mm 丨230mm |
| Optical Feature - F/# | 0.95~1.5 |
| Optical Feature - Average Transmission | ≥80% |
| Optical Feature - Spectral Range | 8~12 μm |
| Optical Feature - Front Lens Coating | DLC |
| Optical Feature - Detector Type | 1280×1024, 12 μm |
| Optical Feature - Focus Type | Electric zoom lens |
| Mechanical - FOV | 36.93° x29.91° (23mm) 3.83° x3.06° (230mm) |
| Mechanical - Weight | 5.2Kg±5% |

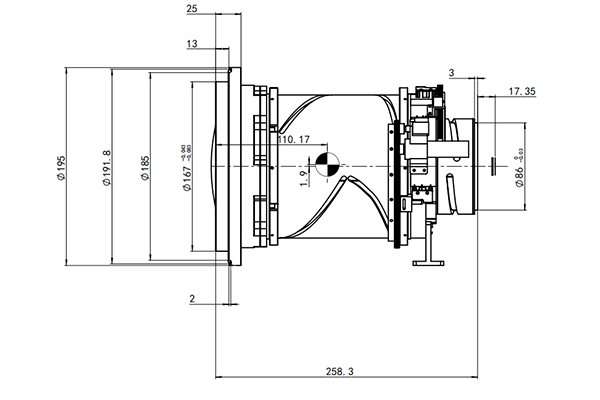

| Mechanical - Max. Dimension | L258.3mm, Φ195mm |
| Environmental - Operating Temperature | -40°C ~ +60°C |
| Environmental - Storage Temperature | -50°C ~ +70°C |
| Environmental - Protection Level | IP67 (Front lens) |
| Thermal Module - 12μm 384x288 (23mm) | 11.44° |
| Thermal Module - 12μm 640x512 (23mm) | 18.96° |
| Thermal Module - 12μm 1280x1024 (23mm) | 36.93° |
| Thermal Module - 17μm 384x288 (23mm) | 16.15° |
| Thermal Module - 17μm 640x512 (23mm) | 26.61° |
| Thermal Module - 12μm 384x288 (230mm) | 1.15° |
| Thermal Module - 12μm 640x512 (230mm) | 1.91° |
| Thermal Module - 12μm 1280x1024 (230mm) | 3.83° |
| Thermal Module - 12μm 1280x1024 (230mm) | 3.83° |
| Thermal Module - 12μm 1280x1024 (230mm) | 3.83° |
