Non-Radiometric Thermal Cores
Product Features

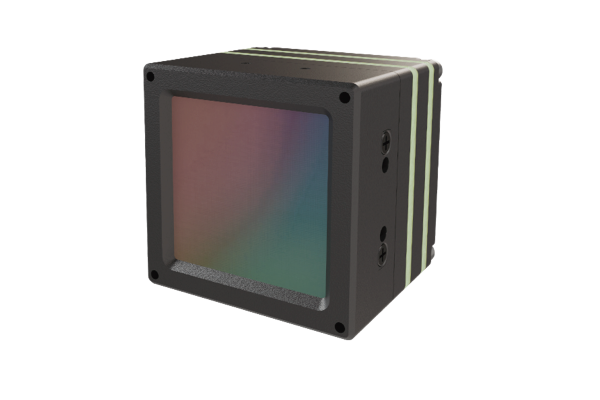

NST Thermal Imaging Core excels in heavy weatherAnti-shock capability up to 100g/6ms for specialapplication scenarios Weighs under 33g and measures 25.9 x 28 x 28 (mm) for integration into UAVs and beyond Shutterless technology ensures real-time imageoutput without pauses Supports both digital (BT656) and analog signals forsynchronous video output A resolution of 640x510 pixels with a 12um pixel pitchImproved sensitivity with NETD of 35mK @ F1.0 at 300K9 changeable pseudo color palettesBroad operational range from - 20°C to +45°C with 5%to 95% RH humidity| Model | ATOM505C |
|---|---|
| Detector | Uncooled VOX FPA |
| Resolution/Pixel pitch | 640×510/12μm |
| NETD | ≤35mK(@F1.0,300K) |
| Spectrum range | 8~14μm |
| Focus Method | Fixed lens |
| Focal length | 9/15/19/25/40/50mm etc |
| Image adjustment | Auto adjustment for contrast ratio & brightness & acutance |
| Uniformity calibration | None shutter technology (NST) |
| Zoom | 2x,4x |
| Noise reduction | Digital filter |
| Polarity | 9 Pseudo color palettes changeable |
| Resolution | 768×576 / 640×480 |
| Power interface | DC:+2.5V ~ 5.5V |
| Analogue video | Double channels |
| Series port | RS232 |
| Digital video | BT656 (768×576) or Digital parallel |
| Keyboard | 4 buttons keyboard |
| Working temperature/humidity | -20°C ~ +60°C,5% ~ 95%RH |
| Storage temperature | -45°C ~ +65°C |
| Power consumption | 1.2w |
| Shock resistance | 100g/6ms |

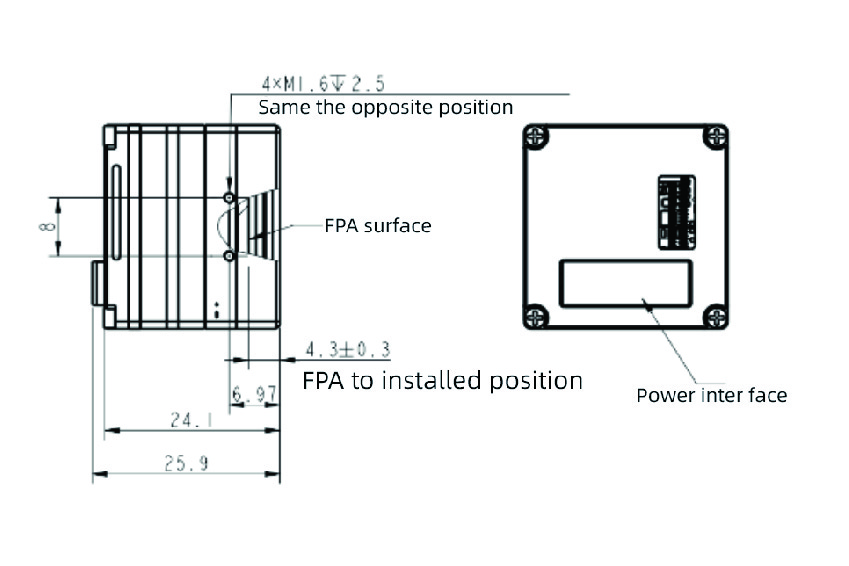

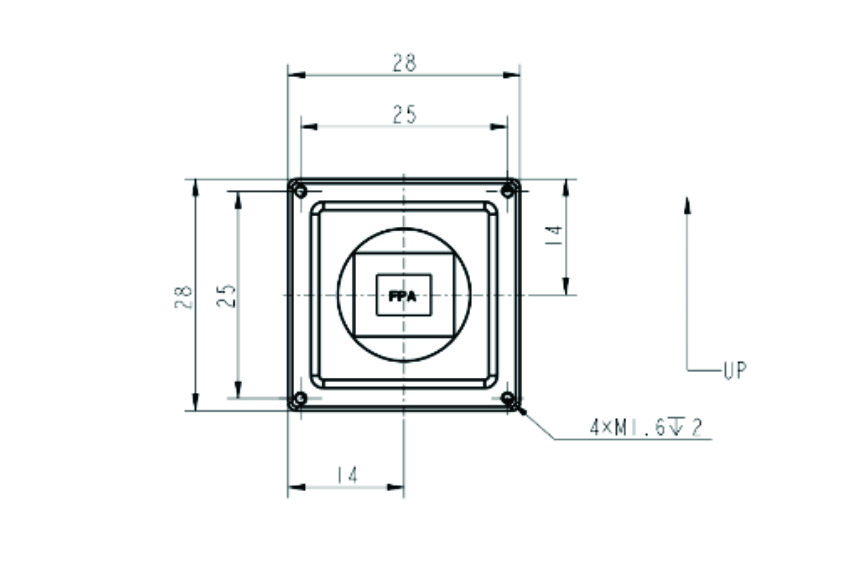

| Size | 25.9mm×28mm×28mm |
| Weight | <33g |
