Non-Radiometric Thermal Cores
Product Features
AI calibration makes image more distinct target even if it is the extreme weather condition The capacity of anti-shock up to 6000J for special application scenarios Compact and lightweight product is easily integrated into the UAV and others The image can always keep stable output, without any pause for better suitable observation in realtime Support digital (BT656) and analog signal synchronous outputs| Model | ATOM507C-00GT | ATOM507C-00GF |
|---|---|---|
| Power Consumption | ≤1.0w | ≤1.2w |

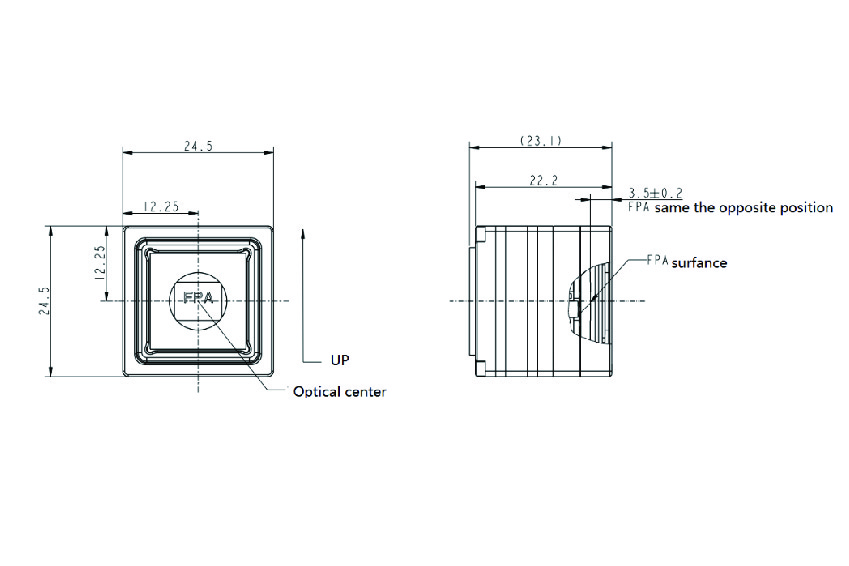

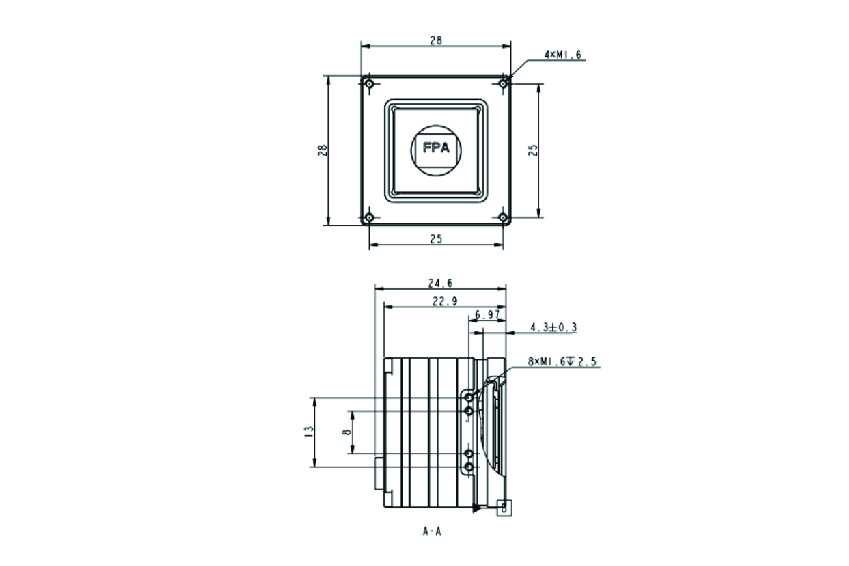

| Size | 24.5×24.5×22.2mm | 28×28×24mm |
| Weight | <23g | <33g |
| Analogue video | Single channel | Double channels |
| Detector | Uncooled VOx FPA |
| Resolution / Pixel Pitch | 640×510 / 12μm |
| NETD | ≤35mK @ F1.0, 300K |
| Spectrum Range | 8~14μm |
| Focus Method | Fixed Lens |
| Focal Length | 9 / 15 / 19 / 25 / 40 / 50mm etc. |
| Image Adjustment | Auto adjustment for contrast ratio, brightness & acutance |
| Uniformity Calibration | None Shutter Technology (NST) |
| Zoom | 2x, 4x |
| Noise Reduction | Digital Filter |
| Palette | 8 Pseudo color palettes, changeable |
| Output Resolution | 768×576 |
| Analogue Video | Double channels |
| Series Port | RS232 |

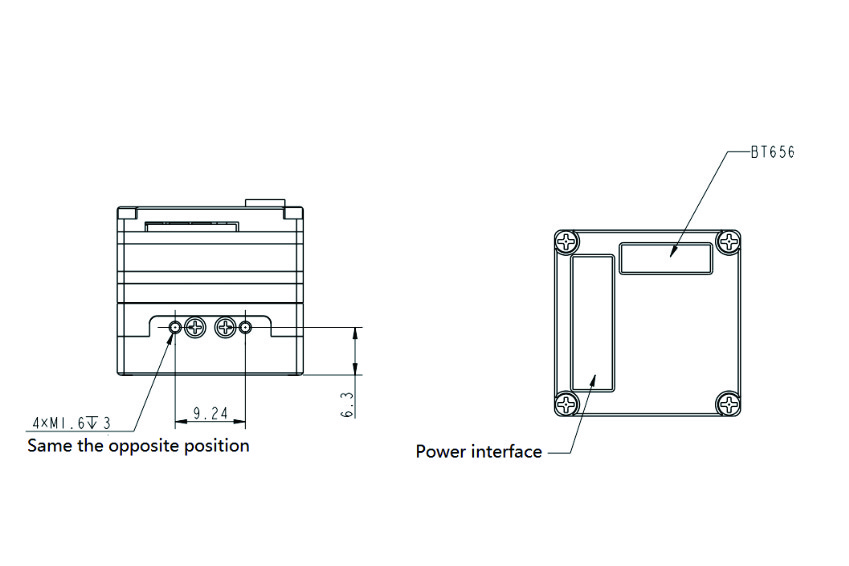

| Digital Video | BT656 (768×576) |
| Keyboard | 4 buttons keyboard (default) |
| Working Temperature / Humidity | -20°C ~ +60°C, 5% ~ 95%RH |
| Storage Temperature | -40°C ~ +60°C |
| Shock Resistance | 6000J |
