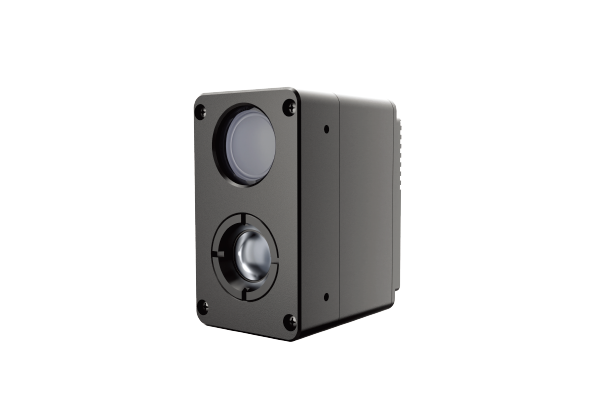

Non-Radiometric Thermal Cores
Product Features
Thermal image resolution up to 640x512, day light camera up to 5MP Ultra-compact design and compatible with third party smoothly Advanced HDR image processing technology Optional video output types: either analog image or digital image Built-in sun protection functions in the infrared camera Intelligent Imaging and precise recognition, featuring AI-powered infrared super-resolution imaging algorithm| Model | AIR-D6 Series |
|---|---|
| Detector (IR) | Thermal Image, VOx Uncooled FPA |
| Detector (Visible) | Visible Light, CMOS Image Sensor |
| Resolution / Pixel Pitch (IR) | 640×512 / 12μm (1280×1024 with super resolution algorithm) |
| Resolution / Pixel Pitch (Visible) | 5MP (2880×1620) / 2.0μm |
| Spectrum Range (IR) | 8μm–14μm |
| NETD (IR) | ≤40mK @300K |
| Sensitivity (Visible) | 2614mV/lux-s |
| Frame Rate (IR) | Digital: 50Hz, Analog: 25Hz |
| Optical Lens | IR / Visible |
| Focal Length / F# (IR) | 6.7mm F/1.0 / 9.1mm F/1.0 / 13.2mm F/1.0 / 19mm F/1.0 |
| Focal Length / F# (Visible) | 3.3mm F/1.6 / 4.3mm F/1.6 / 6.4mm F/1.6 / 7.52mm F/1.6 |
| FOV (IR) | 60°×49° / 45°×37° / 32°×26° / 22°×18° |
| FOV (Visible) | 113°×58° / 91°×46° / 56°×30° / 42°×24° |
| Image Adjustment (IR) | Auto/Manual: contrast ratio, brightness, acutance |
| Image Adjustment (Visible) | Defog |
| Image Noise Reduction | 10 levels |
| Image Gain | 10 levels |
| Color Palettes (IR) | 13 presets (White Hot, Black Hot, Red Iron, Lava, Light, Green, etc.) |
| Analog Video Output | IR/Visible switchable or PIP; CVBS (75Ω), PAL |
| Digital Video Output | IR/Visible switchable or PIP; USB 3.0, UVC |
| Power Supply | DC 5V–25V |
| Power Consumption | <1.8W |

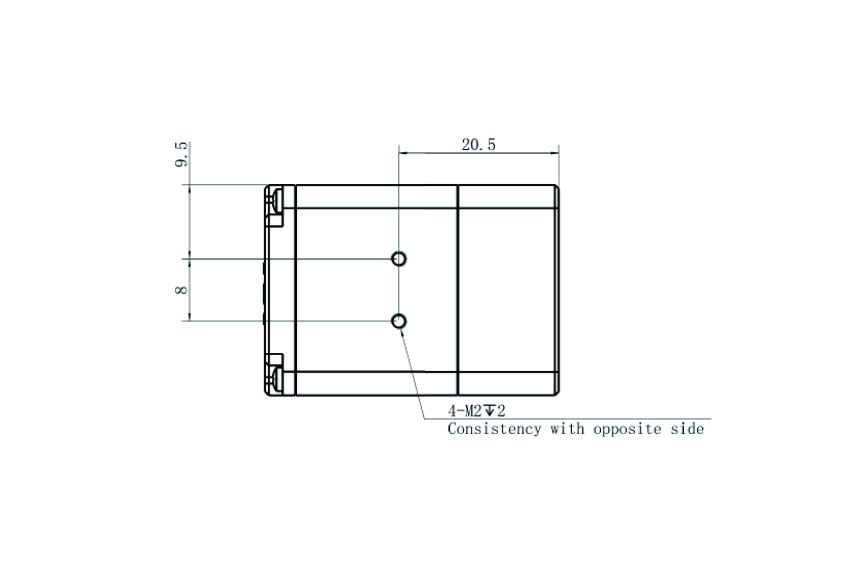

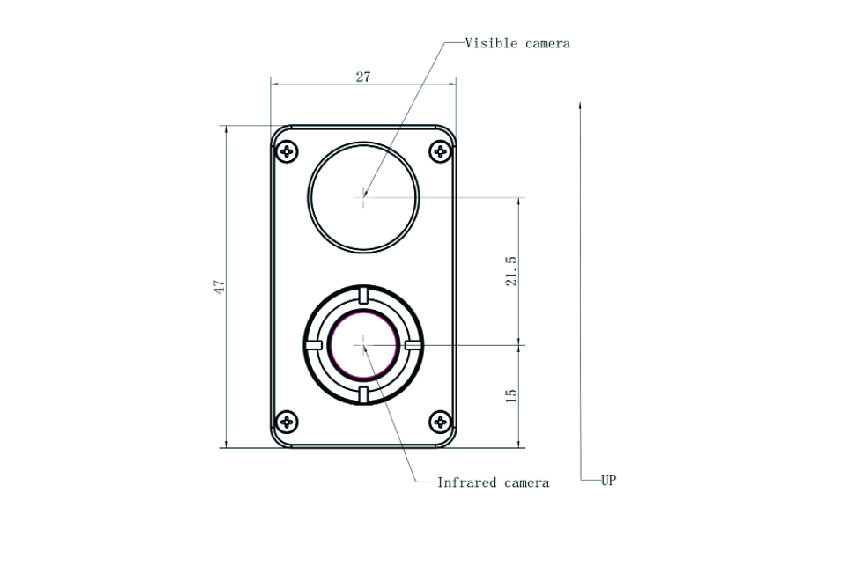

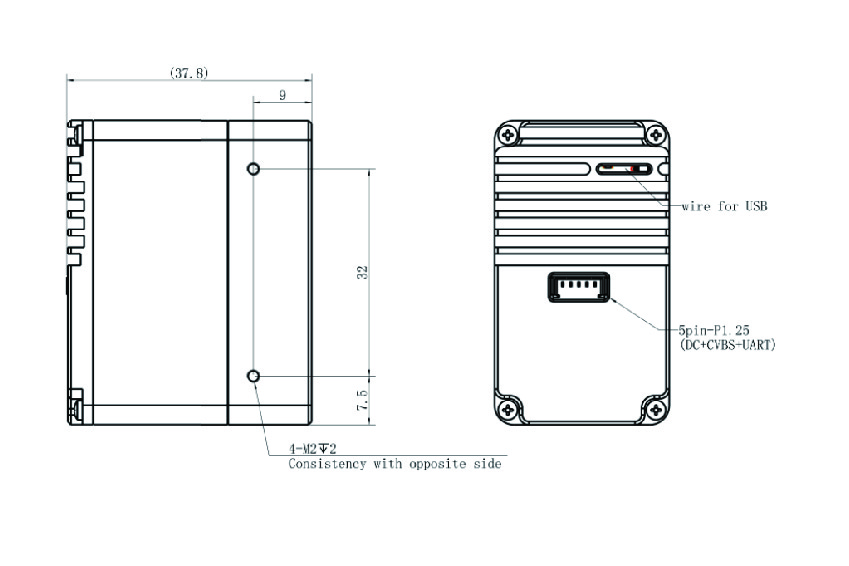

| Dimensions | Approx. 27×50×40mm (with 9.1mm lens) |
| Weight | <80g (with 9.1mm lens, reference only) |
| Working Temperature | -20°C to +60°C |
| Storage Temperature | -45°C to +75°C |
| Vibration Resistance | Random: 5.35grms, 3-axis |
| Shock Resistance | Half-sine: 40g/11ms, 3-axis |
