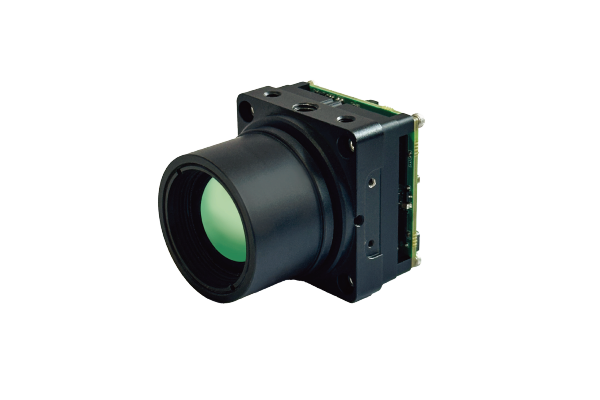

Non-Radiometric Thermal Cores
Product Features
Shutterless technology enables stable real-time image output without interruptions Boots in less than 5 seconds and just 3 seconds for quick deployment Imaging output response for less than 6ms for immediate visualization NETD ≤ 35mK @ F1.0, 300K enhances target distinction in extreme weather Supports both digital (BT656) and analog synchronous output options Functions within -20°C to +60°C with 5% to 95% RH humidity Operates at just 1.3W for energy efficient extended use.| Model | M507C |
|---|---|
| Resolution/Pixel pitch | 640x510/12um |
| Spectrum range | 8~14um |
| Focal length | 9/15/19/25/40/50mm etc |
| Polarity inversion | Black hot & white hot |
| Image adjustment | Auto adjustment for contrast ratio & brightness & acutance |
| Zoom | 2x,4x |
| Polarity | 9 Pseudo color palettes changeable |
| Resolution | 768x576 |
| Power interface | DC:+2.5V ~ 5.5V |
| Analogue video | Double channels |
| Series port | RS232 |
| Digital video | 8 Bit/14Bit (50Hz) |
| Detector | Uncooled VOX FPA |
| Focus method | Fixed lens |
| Uniformity calibration | None shutter technology (NST) |
| Image mirroring | Horizontal & vertical |
| Storage temperature | -40C~+60C |
| Reverse polarity protection | Yes |

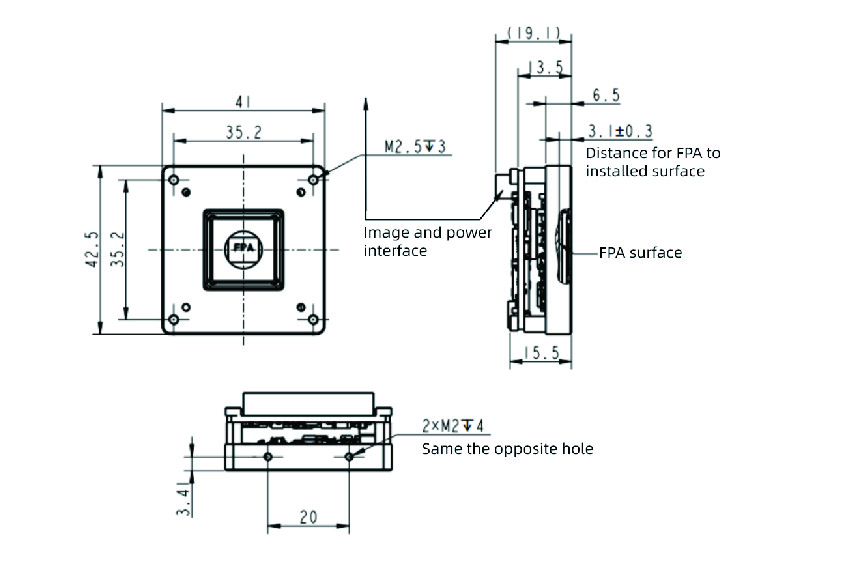

| Size | 42.5mm x 41mm x 19.3mm |
| NETD | <=35mK(@F1.0,300K) |
| Noise reduction | Digital filter |
| Working temperature/humidity | -20C~+60C,5%~95%RH |
| Starting time | Customized with 3s only |
| Weight | <35g (w/o lens) |
| Keyboard | 4 buttons keyboard |
| Power consumption | 1.3W |
