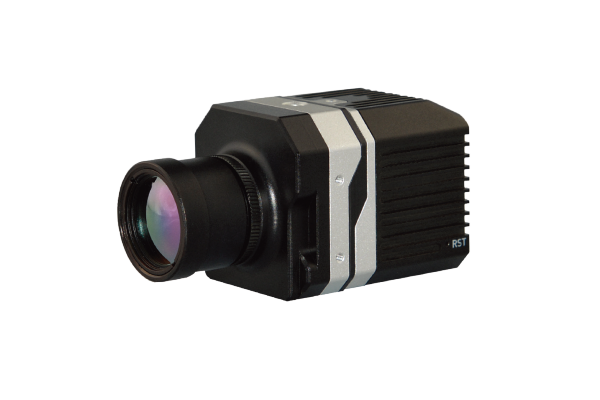

Radiometric Thermal Cores
Product Features
Full screen measurement function Support event analysis of temperature image Compact module design, convenient integration Powerful image process: AGC, 3DNR, IDE Abundant software function| Model | iThermal-T3 | iThermal-T6 |
|---|---|---|
| Resolution | 384x288 | 640x480 |
| Detector type | Uncooled infrared microbolometer FPA |
| Pixel pitch | 17μm |
| NETD | ≤50mK @ 300K, F#=1.0 |
| Spectrum range | 8~14μm |
| Object temperature range | -20°C ~ +550°C (800°C, max. 2000°C) |
| Temperature accuracy | ±5% |
| Measurement method | Point / Line / Frame, etc. |
| Measurement metadata | Yes |
| Focal length | 6.6mm (iThermal-T3), 9.6mm, 15mm, 19mm, 25mm, etc.; Motorized: 25mm, 35mm, 50mm, etc. |
| Focus method | Manual / Motorized |
| Image denoise | 3D DNR |
| Thermal view | HDR, Linear |
| Image enhancement | IDE |
| Color palette | 11 options: White hot / Black hot / Ironbow / Rainbow etc., Support customization |
| Intelligent analysis | Motion detection, cross line, intrusion, area entry and exit |
| Human & Vehicle detection | Automatic detection for human, vehicle and vessel |
| Video compression | H.264 |
| Video interface | CVBS (75Ω) PAL |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, ONVIF (Profile S) |
| User management | Up to 10 users, 3 levels: Administrator, Operator, General |
| Security | Support password protection, bonding MAC ID, IP filtration, HTTPS encryption |
| Network port | RJ45 10M/100M self-adaptive Ethernet |
| Communication port | 1×ch RS-485, 1×ch RS-232 |
| Alarm | 1×ch input, 1×ch output |
| Memory interface | Micro SD (FT) up to 64GB |
| Work temperature | -20°C ~ +60°C |
| Work humidity | <90%RH |
| Storage temperature | -45°C ~ +65°C |
| Power supply | DC12V |
| Power consumption | <3W |

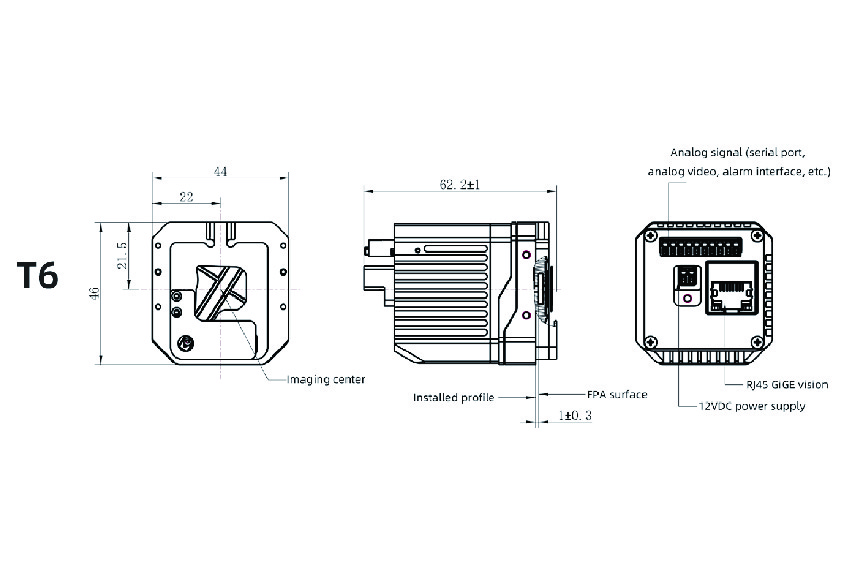

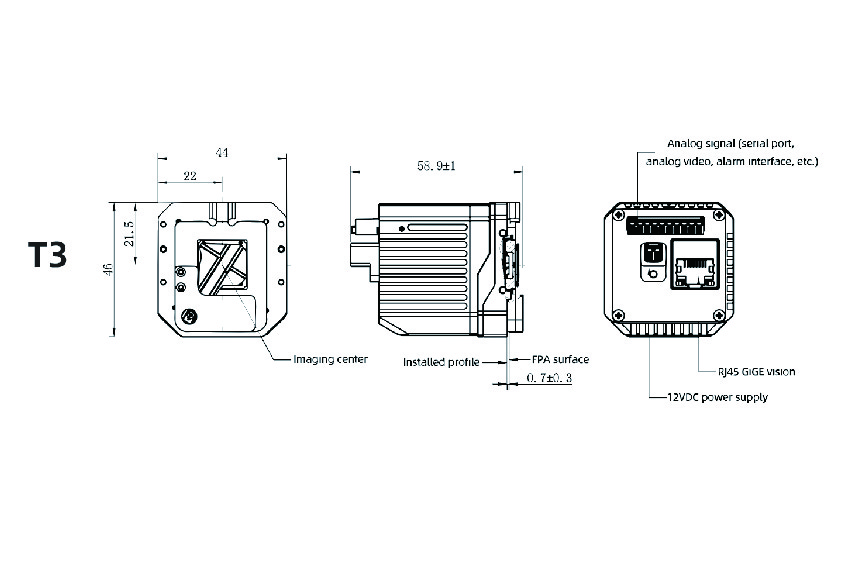

| Dimension | 38mm×44mm×45mm |
| Weight | <100g (w/o lens) |
