Detector

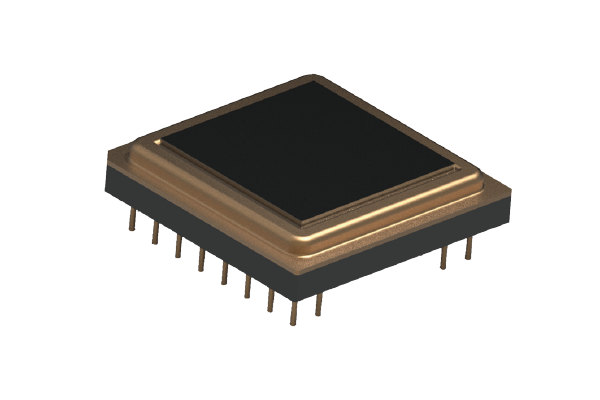

This product uses a non-cooled VOxthermal imaging sensor with a pixel size of12um and offers sensor resolutions of384x288, 640x512, 1280x1024 for multipleoptions.
It features low power consumption, smallsize, and no TEC, making it ideal forlow-power, size-sensitive applications.
Product Features
Vanadium Oxide Microcalorimeter Technology Excellent environmental adaptability: -40°C to 85°CHigh sensitivity: NETD≤40mKThermal response time: <12ms| Model | Detector |
|---|---|
| Detector Technology | Non-cooled VOx microcalorimeter |
| Wavelength Range | 8~14um |
| Pixel Pitch | 12um |
| Resolution | 384x288, 640x512, 1280x1024 |
| Operating Rate | >=99.5% |
| NETD | <=40mK(@F/1.0, 50Hz,300K) |
| Response Time | <12ms |
| Frequency | 50/60Hz |
| Power Consumption | <200mW(@50Hz, 25C) |
| Digital Output | 14 bits |
| Operating Temperature | -40C~85C |

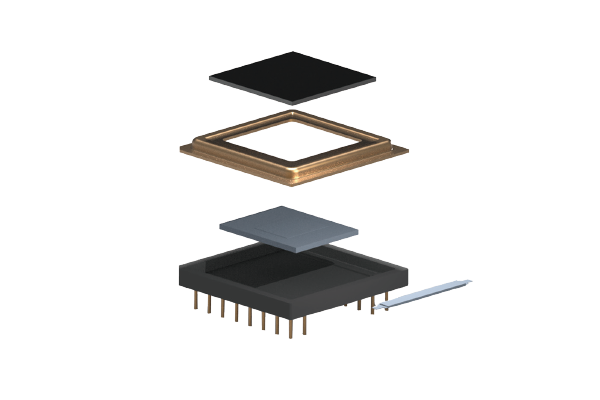

| Package Type | Ceramic vacuum package |
| Package Size | 22x22x4.5mm (excluding pins) |
| Weight | ≤5g |
