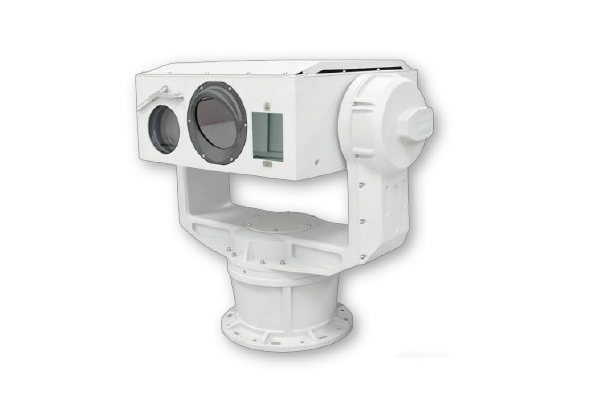

Cooled Thermal Imaging PTZ Camera
Product Features
Detect wide range frequency spectrum, integratedcooled infrared detector and visible camera Rapid rotation speed adjustment that is, rotationspeed up to 120%/s, acceleration for 120°/s² Strong environmental adaptability, IP66, prevent water,dust and corrosion resistant, electromagneticinterference resistant Optional laser ranging, laser illumination andgyroscopic image stabilization| Model | UHD Series |
|---|---|
| Detector Type | Uncooled |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| NETD | ≤20mK @ 30K |
| Spectral Range | 8~14μm |
| Frame Rate | 50Hz |
| Focal Length | 60mm / F1.2 |
| Field of View | 21.7×17.4° / 7.2×5.8° |
| Magnification | 1.1X / 3.2X |
| Digital Zoom | 1× ~ 4.8× smooth & rapid zoom |
| Focus Mode | Automatic and Manual |
| Diopter | ±5D |
| Reticle Click @ 100m | 1 inch / 1.6 inch (MOA) |
| Zeroing Profiles | 5 |
| AI Ranging | Yes |
| Laser Rangefinder | Optional |
| Navigation | GPS |
| Sensors | GPS / Gyro / Electronic / Magnetic / Barometric Compass |
| Display Type | AMOLED |
| Display Resolution | 1024×768 |
| Display Size | 0.39 inch |
| Color Palette | 6 modes |
| Storage | 64GB eMMC |
| Streaming | Yes |
| Interface | Type-C, HDMI Out, Wi-Fi 5.1 / Bluetooth 5.0 |
| Battery | Replaceable 18650×2 |
| Battery Life | 8h |
| Operating Temperature | -30℃ ~ +50℃ |
| IP Rating | IP67 |
| Weight | 950g ±10% |
